Caractéristiques

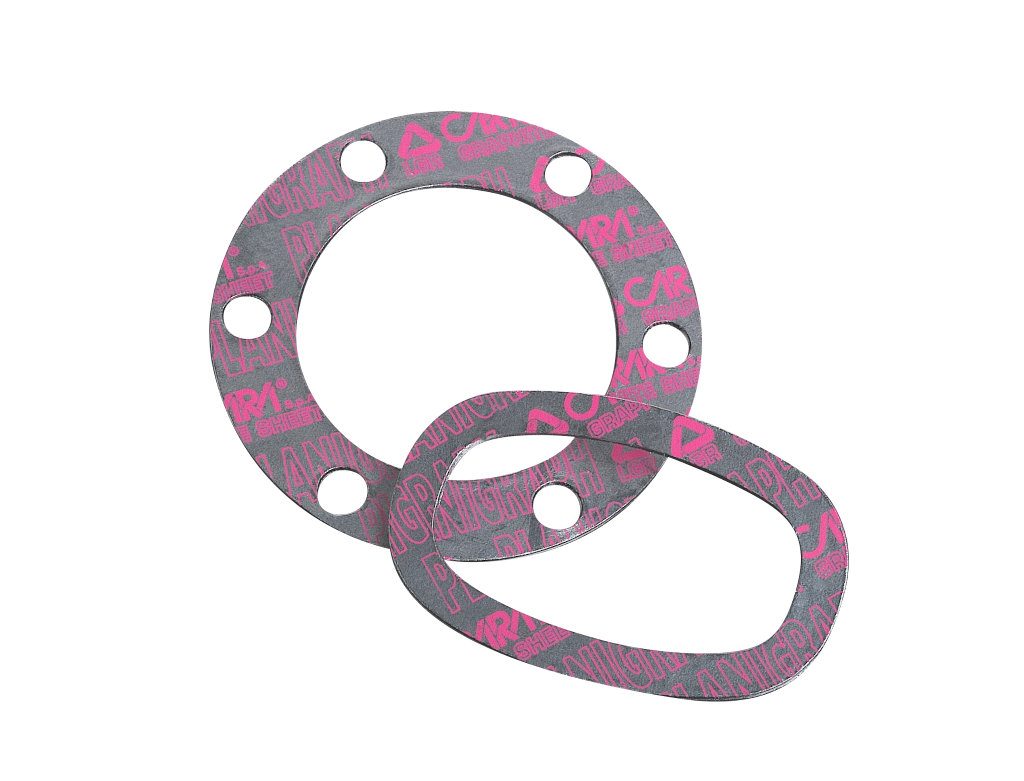

Les joints en graphite pur LGR Planigraph™ offrent d'excellentes performances lorsqu'ils sont appliqués sur les bride d'un robinet et sur les brides des échangeurs de chaleur. Une meilleure étanchéité peut être obtenue grâce au bord intérieur inox du joint. Pour une étanchéité parfaite avec ce type de joint il est recommandé d'adopter une épaisseur de 1,5 mm.
Composition
Graphite expansé C > 98,00%
Insertion inox lisse
Applications
Joints graphite pour brides des robinets et machines industrielles
Avoid the oxidizing streams. With oxygen and hot air limit the temperature to 350°C.
TECHNICAL DATA | |
T °C | -200 // +450 (1) / +550 (2) |
P | 100 |
PH | 0 ÷ 14 (3) |
PLANIGRAPH LGR | technical data | |
Graphite density | gr/cm3 | 1.0 |
Ash content | % | =< 2.00 |
Reinforcing sheet material | S.S. | 316L |
Reinforcing sheet thickness | mm | 0.05 |
Reinforcing sheet number | No. | 1 |
Relaxation stress 16h, 300°C, initial stress 50 N/mm2 | N/mm2 | > 45 |
Compressibility | % | 40 - 50 |
Recovery | % | 10 - 15 |
Maximum assembly load under service condition | N/mm2 | 60 |
Available sizes : (mm) 1.000 x 1.000 and 1.500 x 1.500; (inch) 40” x 40” and 60” x 60” Available thickness: (mm) 0,5 ÷ 1,0 ÷ 1,5 ÷ 2,0 ÷ 3,0; (inch) 1/64” ÷ 3/64” ÷ 1/16” ÷ 5/64” ÷ 1/8”; other thickness available on demand. |
Pas utilisable avec les agents oxydants. Avec l'oxygène et l'air, la température maximale est de 350°C.
Size | 1.000 x 1.000 1.500 x 1.500 |
40” x 40” 60” x 60” |
Thickness | 0.5 ÷ 3.0 | 1/64” ÷ 1/8" |
