Caractéristiques

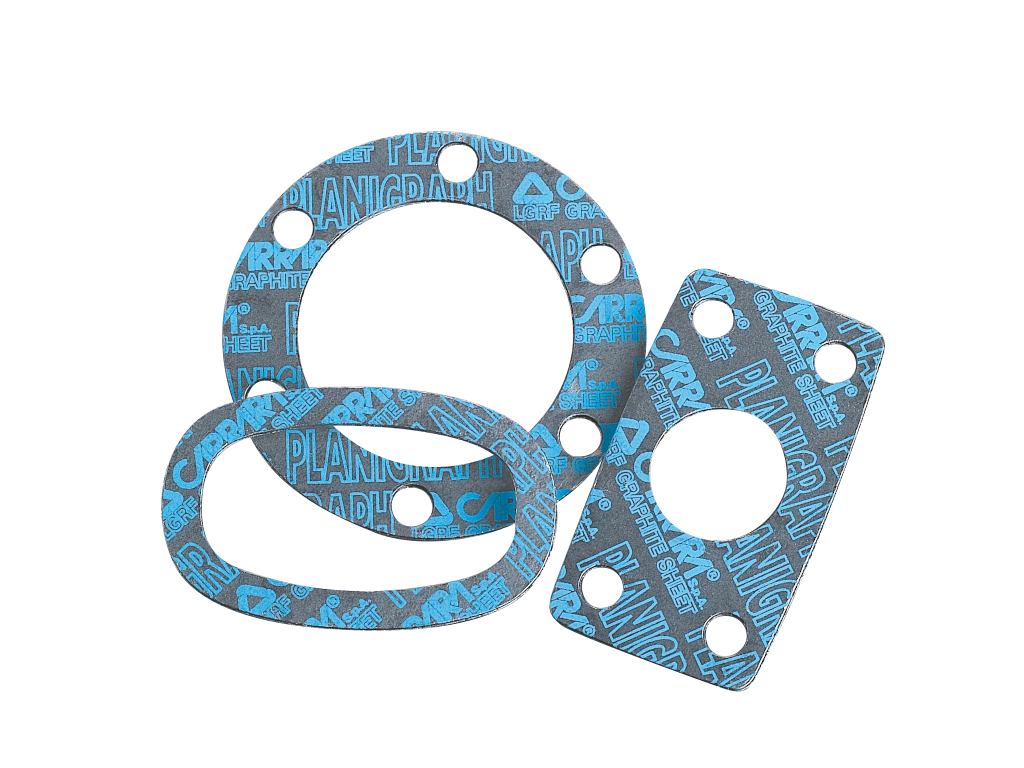

Les feuilles des joints en graphite expansée LGRF avec renforcement inox à picots représententl'étanchéité la plus polyvalente pour brides industrielles de tuyauteries et d'échangeurs de chaleur. Une meilleure résistance à la perméabilité peut être obtenue grâce au bord intérieur du joint dans la configuration Metalbond.
Composition
Graphite expansé C > 98,00 %
Renforcement inox à picot
Applications
Joints graphite reinforcés inox pour étanchéité des brides RF, FF, LTG et LFM
TECHNICAL DATA | |
T °C | -200 // +450 (1) / +550 |
P | 100 |
PH | 0 ÷ 14 (3) |
PLANIGRAPH LGR | technical data | |
Graphite density | gr/cm3 | 1.00 |
Ash content | % | =< 2.00 |
Reinforcing sheet material | S.Steel | 316L |
Reinforcing sheet thickness | mm | 0.10 |
Reinforcing sheet number | No. | 1 |
Relaxation stress 16h, 300°C, initial stress 50 N/mm2 | N/mm2 | > 45 |
Compressibility | % | 30 - 40 |
Recovery | % | 15 - 20 |
Maximum assembly load under service condition | N/mm2 | 140 |
Available sizes : (mm) 1.000 x 1.000 and 1.500 x 1.500; (inch) 40” x 40” and 60” x 60” Available thickness: (mm) 1,0 ÷ 1,5 ÷ 2,0 ÷ 3,0; (inch) 3/64” ÷ 1/16” ÷ 5/64” ÷ 1/8”; other thickness available on demand. |
